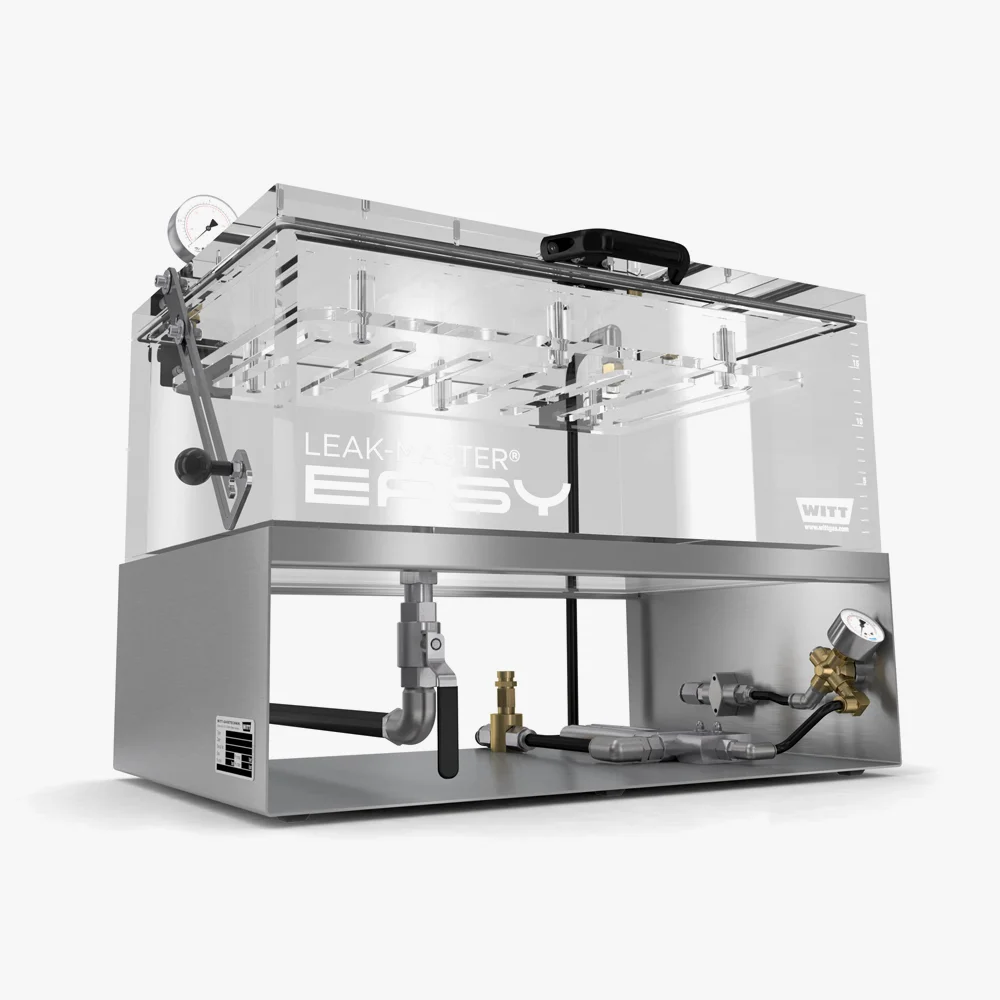

LEAK-MASTER® EASY
Leak detection system for packages with bubble test. LEAK-MASTER® EASY features the detection even of the smallest leaks.
The package is placed into a chamber filled with water, the head space above the water level is evacuated using a venturi vacuum (compressed-air) system. The package immersed in water inflates, any leak and the location of the leak is identified by a stream of bubbles.
Benefits:
Economic and uncomplicated
Visual inspection allows localization of the leak
For all flexible and rigid kind of packs (food-, pharmaceutical-, industrial- and other packages)
Short testing period (< 30 sec.)
Easy-to-use intuitive system – no special skills required
Easy installation and start-up
No trace gas required in package
Can also be used for altitude simulation
Optionally also for vacuum packaging, set Order-No. 956992700
No calibration required
Various chamber sizes available
Low maintenance
Easy to clean perspex housing
No vacuum pump necessary
No electrical connections
LEAK-MASTER® EASY Control Unit Plus
Controler for leak detector LEAK-MASTER® EASY. In combination with LEAK-MASTER® EASY features non-destructive detection of the smallest leaks without the need of costly helium.
Pre-defined measurement programmes, an altitude simulation as well as an user independently quick and continuously working mode characterise this device.
Together with the exclusive GASCONTROL CENTER-Software the measured results can be documented providing complete traceability. Provide your customer, auditor and so on with the results ensuring that your product has the best possible quality.
Completes easy and uncomplicated your LEAK-MASTER® EASY.
A flexible controller to guarantee quality and productivity of production processes.
Avantajları:
Minimal response time
Quick product change
No calibration required
Simple to operate via touch-screen
Easy installation and start-up
Permanent monitoring of set limit values
Operator friendly – data and process parameter entry and administration by means of integrated keyboard or remote personal computer (e.g. MS-Excel® )
Perfect documentation by complete user- and product data as well as error logs
Convenient data administration and evaluation for customer oriented quality documentation
Alarm signals are given if the set limits are exceeded and a potential free contact operates to e.g. auto-stop your machine to avoid quality problems
Remote transmission of results via Ethernet
USB connection for file transfer by USB memory stick
Ethernet connection for network integration
Measured data storage
Administration of product names
User management for measurement personalization
Individual configurable error codes with identification from type and location of leak
Ideal for altitude simulation testing
For retrofitting your existing LEAK-MASTER® EASY
Hygienic and easy to clean splash-proof stainless steel cabinet / housing
Options:
Barcode Reader for simple and quick user/product selection with IP-protection
software GASCONTROL CENTER for recording of results (see separate data sheet)
LEAK-MASTER® PRO
Micro-leak detection system for packages based on CO₂ . LEAK-MASTER® PRO features non-destructive detection of the smallest leaks without the nee d for costly Helium.
Benefits:
Minimal response time
Quick product change
For flexible and rigid packs
No calibration required
Operator friendly – data and process parameter entry by means of integrated keyboard or remote personal computer (e.g. MS-Excel®)
Easy-to-use intuitive system – no special skills required
Convenient data administration and evaluation for customer oriented quality documentation
Various chamber sizes (see back side)
Easy installation and start-up
Easy to clean splash-proof stainless steel cabinet / housing
Remote transmission of results via Ethernet
Potential free alarm contact for connection of external audible/visual device
Options:
Barcode Reader with IP-protection for simple and quick user/product selection
Wireless data transmission via WLAN (WIFI)
Stainless steel mobile workstations for various models available
LEAK-MASTER® MAPMAX
Automatic in-line micro-leak detection system for packages based on CO₂. LEAK-MASTER® MAPMAX features non-destructive detection of the smallest leaks without the need of costly helium - directly from the packaging line.
CO₂ is the most important gas in the packaging of food under modified atmospheres. The LEAK-MASTER® MAPMAX uses this CO₂ as trace gas. That way it is possible to test the packages for leaks directly after the packing process.
The LEAK-MASTER® MAPMAX places the packages or complete shipping cases precisely in the test chamber. If the test sample is leaking, the pressure difference will result in a gas flow from the package into the chamber and the CO₂ -concentration within the chamber rises. The highly sensitive sensor will notice the changes of the CO₂ -concentration and even smallest leaks are easily detected.
After each test cycle (up to 15 cycles per minute) the chamber is ventilated and the test sample is moved on to the following system. If a leak has been detected, several potential free contacts for communication with external systems are available (e.g. alarms and/or pusher).
Benefits:
Short response time
High operating speed (max. 15 cycles/min.)
For single packages or complete shipping cases
Various chamber sizes
For flexible and rigid packs
No calibration required
Easy-to-use intuitive system – no special skills required
Operator friendly - data and process parameter entry by means of integrated PLC with touch screen or via remote personal computer
Convenient data administration and evaluation for customer oriented quality documentation
Remote transmission of results via Ethernet
Easy to clean stainless steel housing
